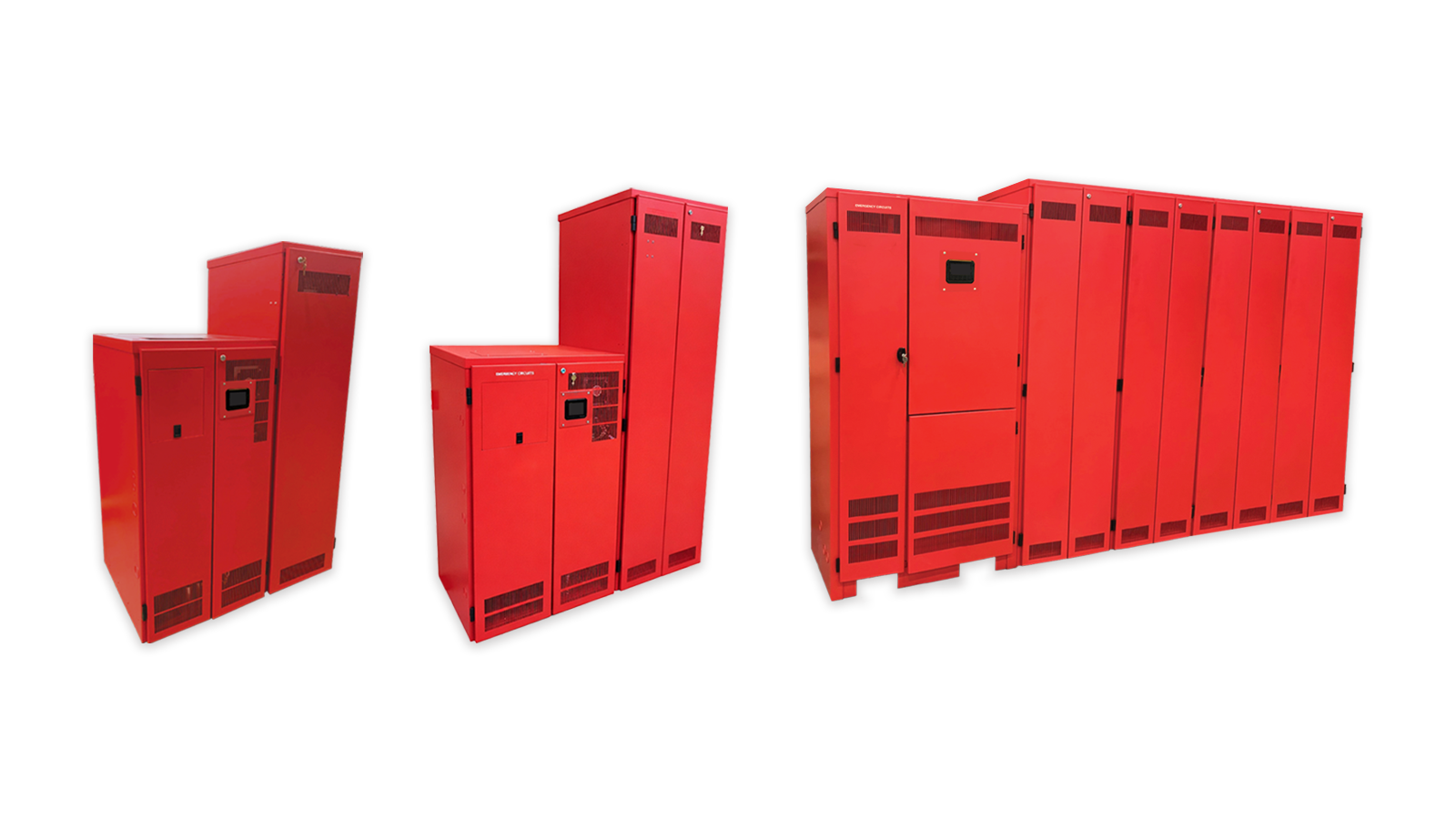

Three-Phase Inverter
Delivering 98% efficiency in an industry-leading compact footprint, the Hypernova-U Series three-phase central inverter family provides reliable backup power and features OUST-rated design to support auxiliary and motor loads with code-compliant 20-minute runtime. Available from 3.2 to 60.0 kVA, it combines rapid transfer, flexible communication options and robust diagnostics for automated testing and monitoring.
Power Capacity: 3.2kVA | 4.2kVA | 5.0kVA | 7.5kVA | 10.0kVA | 12.5kVA | 16.7kVA | 25.0kVA | 33.2kVA | 37.5kVA | 50.0kVA | 60.0kVA
Efficiency: 98% Efficient Typical
Runtime: 20 Minute Standard
Transfer Time: No Break 2ms Transfer Time
Standard Diagnostics: Automatic Event, Test, and Alarm Log
Optional Diagnostics: Status Monitoring | Summary Form C Contacts | Summary Alarm | Output Trip Alarms | Remote Panels
Communications: Standard: RS-232 Port | Optional: BACnet, BACnet IP, Modbus TCP/IP, Modbus RTU, IoT Inverter Connect
Standard Features: PWM/IGBT Technology and Micro-Controller | Internal Maintenance Bypass | User Programmable with Password Protection | Input Circuit Breaker (65 KAIC Rating) | NEMA Type 1 Cabinet | Space-Saving Design | Low Audible Noise (45 dBA @1m) | Forced Air Cooling Only During Emergency Operation (No Filters Required)
Optional Features: External Maintenance Bypass | Output Circuit Breakers | Fast Charge | Seismic Mounting
Input Voltage: 120/208 or 277/480 VAC | 3-Phase 4-Wire Plus Ground | Custom Available (Contact Factory)
Output Voltage: 120/208 or 277/480 VAC | 3-Phase 4-Wire Plus Ground | Custom Available (Contact Factory)
Output Load Power Factor: 0.5 Lag to 0.5 Lead
Output Voltage Distortion: Less Than 3% THD for Linear Loads
Compatibility: Generator (10x Inverter Size) | Motor Loads
Inverter Operating Temp: 32°F to 104°F (0°C to 40°C)
Battery Operating Temp: 68°F to 86°F (20°C to 30°C)
Optional Service & Support: Factory Startup & Training | Extended Maintenance Plan | Extended Warranty
Cabinet Size (HxWxD"): 3.2-10kVA: Electronics 47x24x25; Batteries 62x17.5x25 | 12.5-16.7kVA: Electronics 47x30x25; Batteries 77x22.75x25 | 25-33.2kVA: Electronics 72x37.5x25; Batteries 77x45.5x25 | 37.5-50kVA: Electronics 72x37.5x25; Batteries 77x68.25x25 | 60-80kVA: Electronics 72x44x31; Batteries 77x91x25
