Three-Phase Inverter

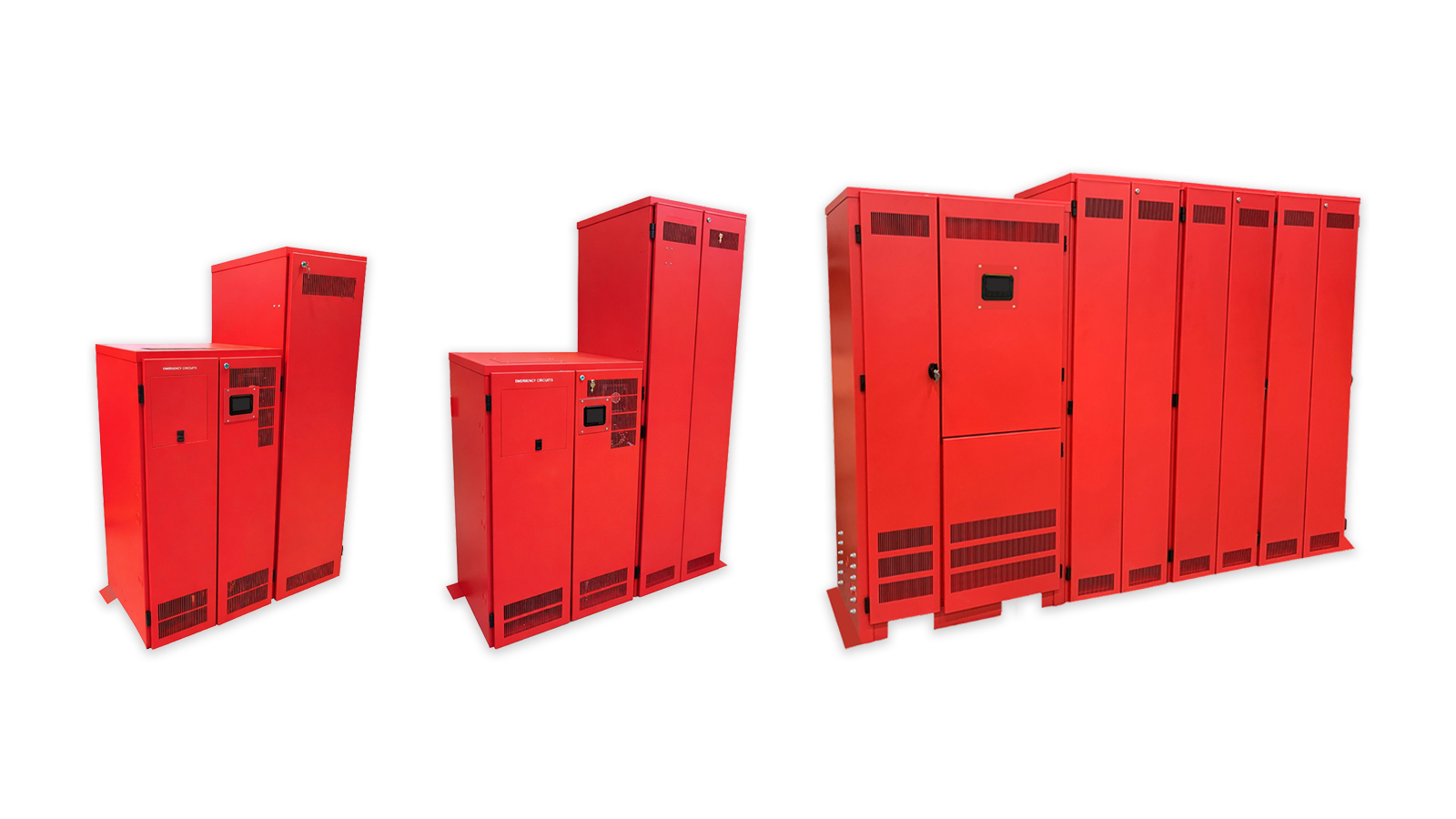

Delivering 98% efficiency in an industry-leading compact footprint, the Hypernova-H Series three-phase central inverter family provides reliable, code-compliant backup power and features OSHPD Special Seismic Certification preapproval for use in California healthcare facilities. Available from 5.0 to 50.0 kVA, it combines rapid transfer, flexible communication options and robust diagnostics for automated testing and monitoring. OSHPD SSC Preapproval Number: OSP-0895.
Power Capacity: 5.0kVA | 7.5kVA | 10.0kVA | 12.5kVA | 16.7kVA | 25.0kVA | 33.2kVA | 37.5kVA | 50.0kVA
Efficiency: 98% Efficient Typical
Runtime: 90 Minute Standard | Configurable (Contact Factory)
Transfer Time: No Break 2ms Transfer Time
Standard Diagnostics: Automatic Event, Test, and Alarm Log
Optional Diagnostics: Status Monitoring | Summary Form C Contacts | Summary Alarm | Output Trip Alarms | Remote Panels
Communications: Standard: RS-232 Port | Optional: BACnet, BACnet IP, Modbus TCP/IP, Modbus RTU, IoT Inverter Connect
Standard Features: Withstand Seismic Rating Based on Shaker Table Testing | PWM/IGBT Technology and Micro-Controller | Internal Maintenance Bypass | User Programmable with Password Protection | Input Circuit Breaker (65 KAIC Rating) | NEMA Type 1 Cabinet | Space-Saving Design | Low Audible Noise (45 dBA @1m) | Forced Air Cooling Only During Emergency Operation (No Filters Required)
Optional Features: External Maintenance Bypass | Output Circuit Breakers | Fast Charge | Seismic Mounting
Input Voltage: 120/208 or 277/480 VAC | 3-Phase 4-Wire Plus Ground | Custom Available (Contact Factory)
Output Voltage: 120/208 or 277/480 VAC | 3-Phase 4-Wire Plus Ground | Custom Available (Contact Factory)
Output Load Power Factor: 0.5 Lag to 0.5 Lead
Output Voltage Distortion: Less Than 3% THD for Linear Loads
Compatibility: Lighting Loads | Motor Loads
Inverter Operating Temp: 32°F to 104°F (0°C to 40°C)
Battery Operating Temp: 68°F to 86°F (20°C to 30°C)
Optional Service & Support: Factory Startup & Training | Extended Maintenance Plan | Extended Warranty

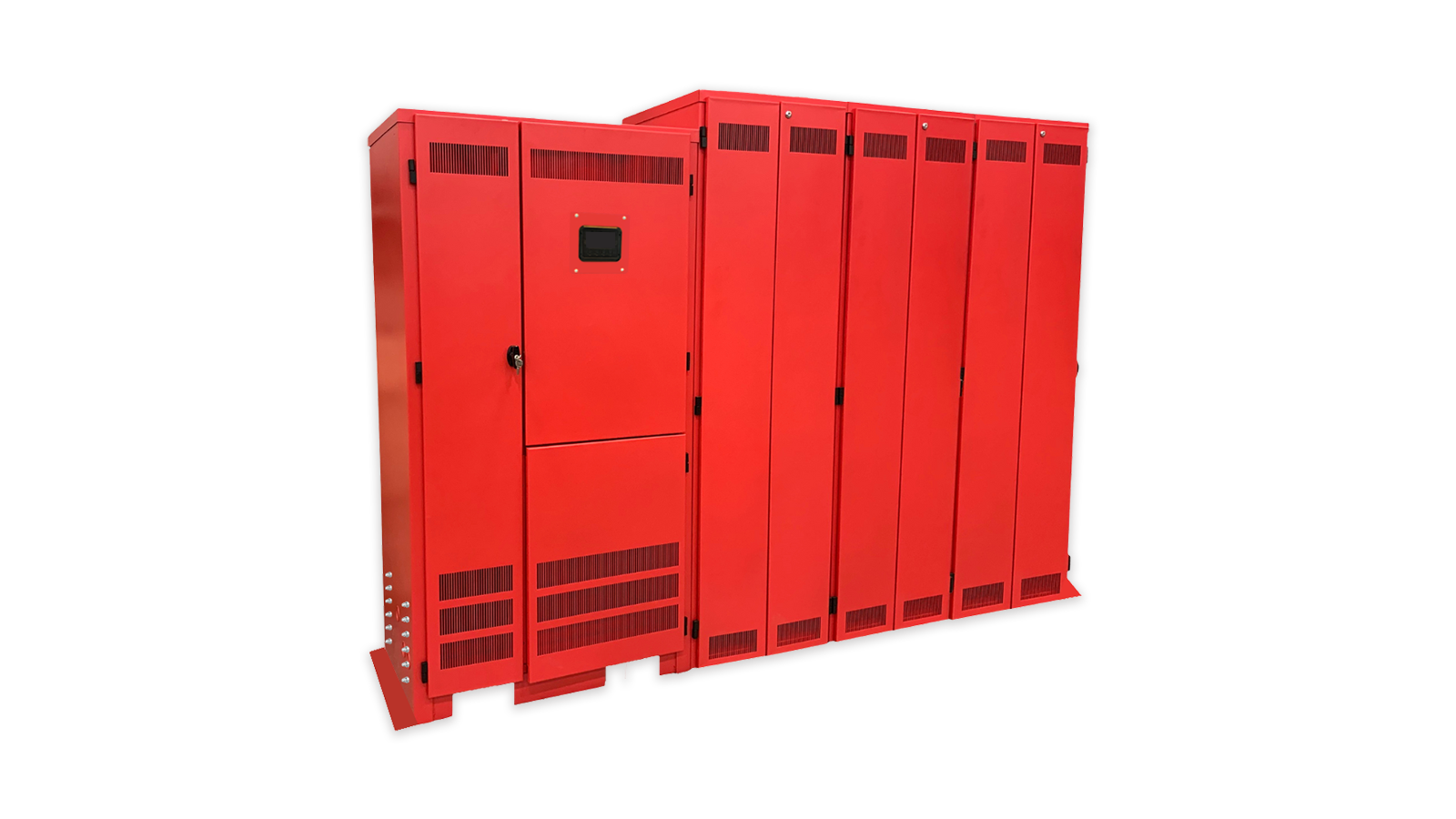

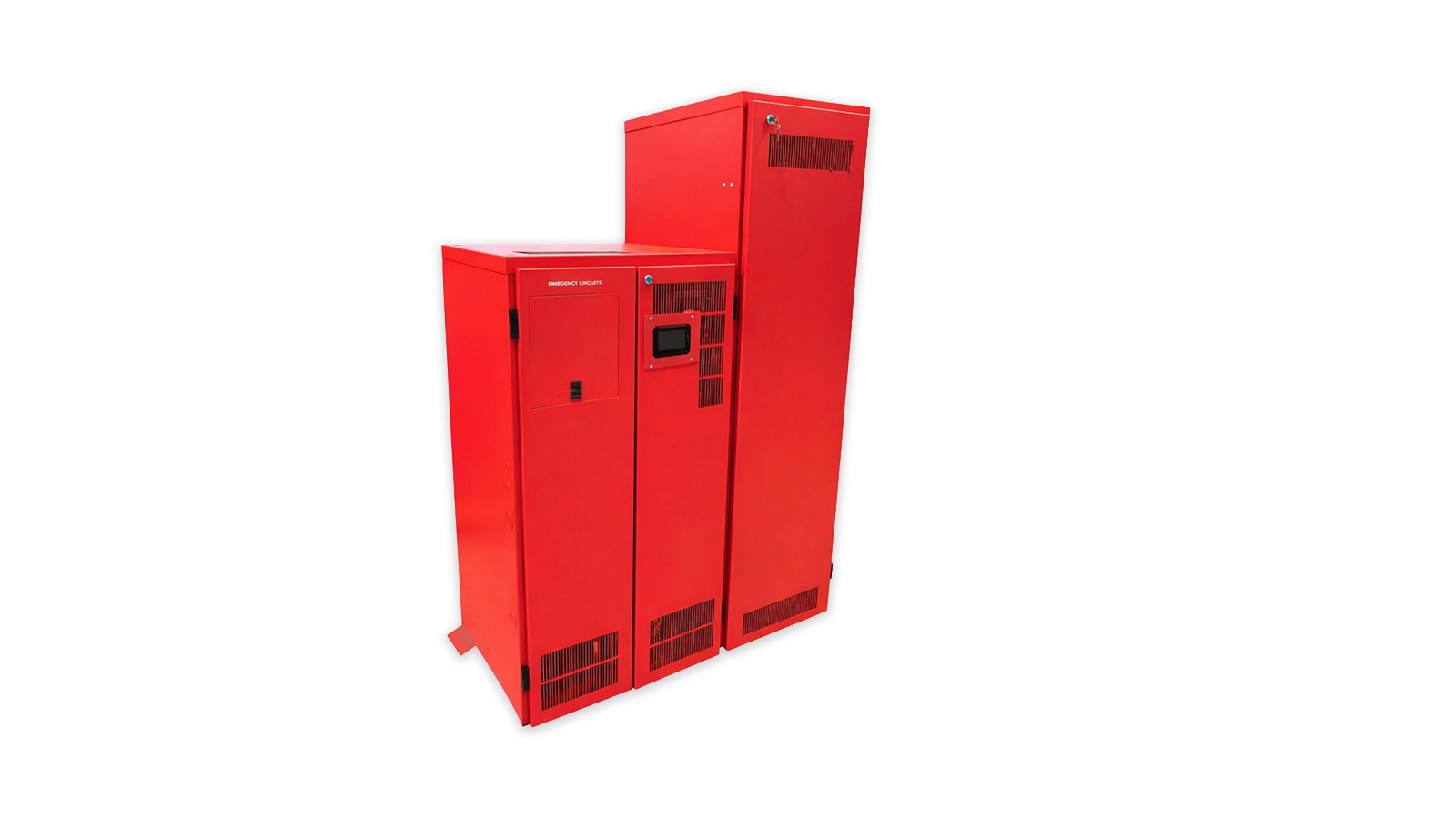

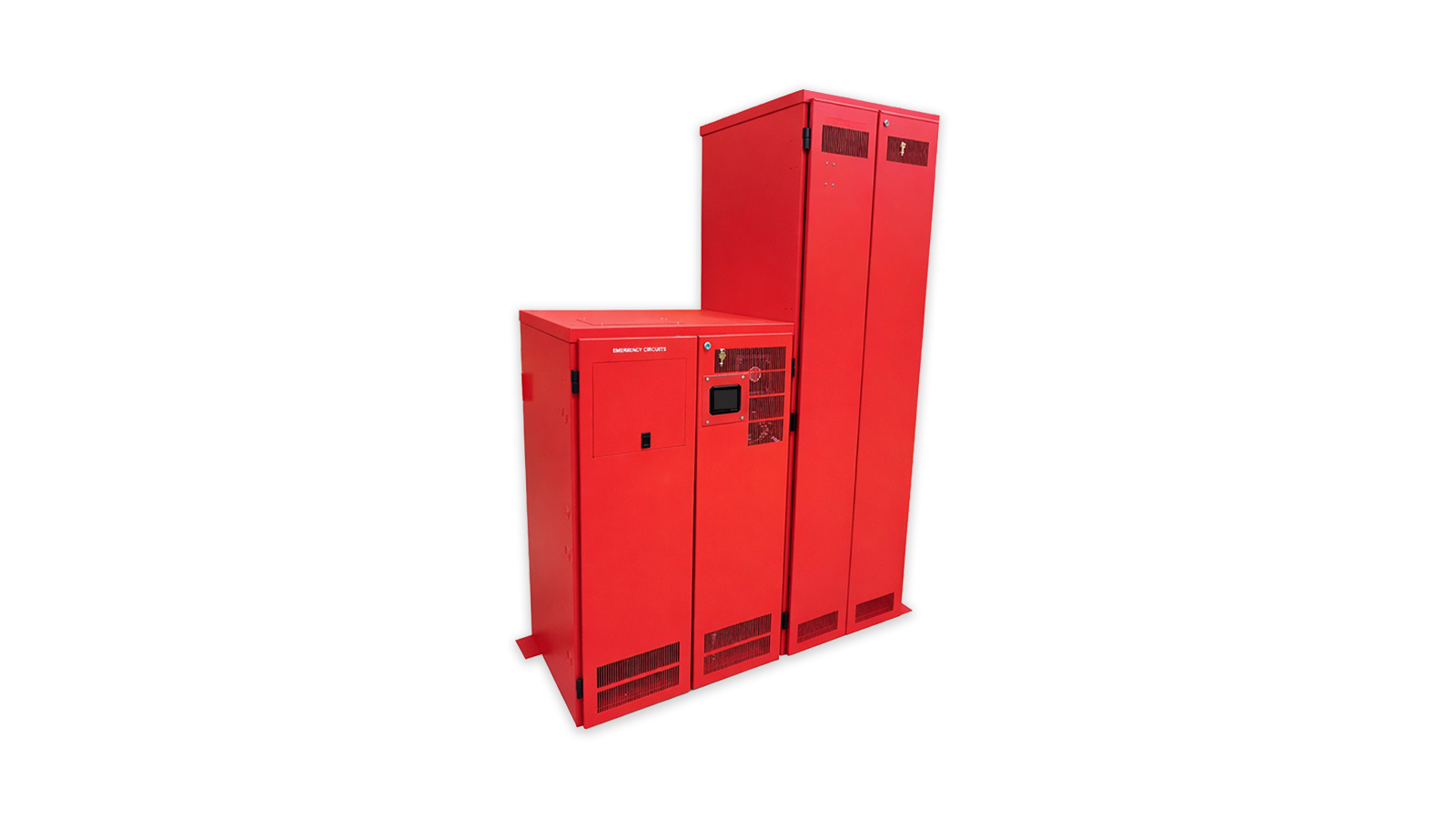

Cabinet Size (HxWxD"): 5.0-10kVA: Electronics 47x24x25; Batteries 62x17.5x25 | 12.5-16.7kVA: Electronics 47x30x25; Batteries 77x22.75x25 | 25-33.2kVA: Electronics 72x37.5x25; Batteries 77x45.5x25 | 37.5-50kVA: Electronics 72x37.5x25; Batteries 77x68.25x25
