Inverter Power System

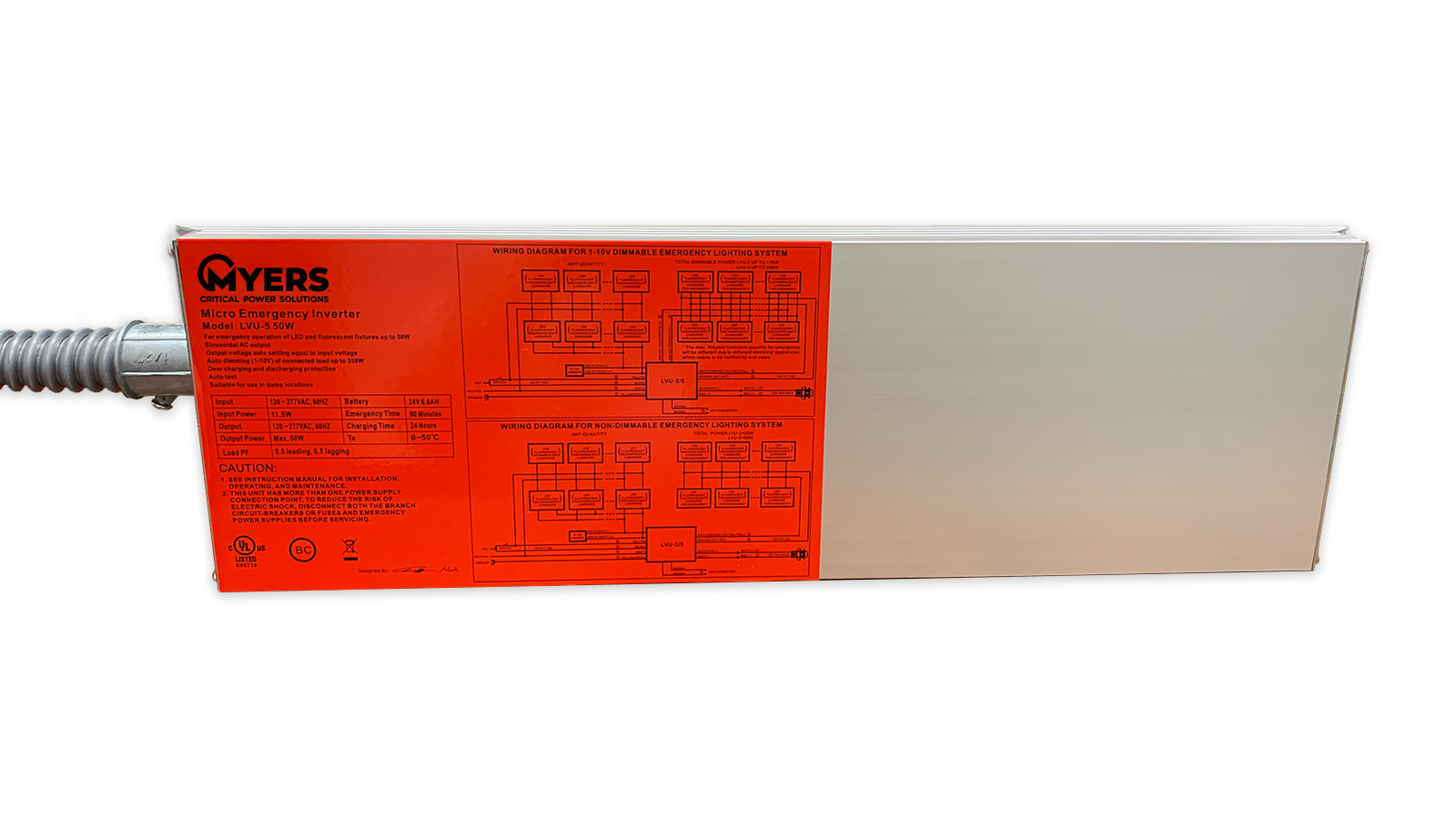

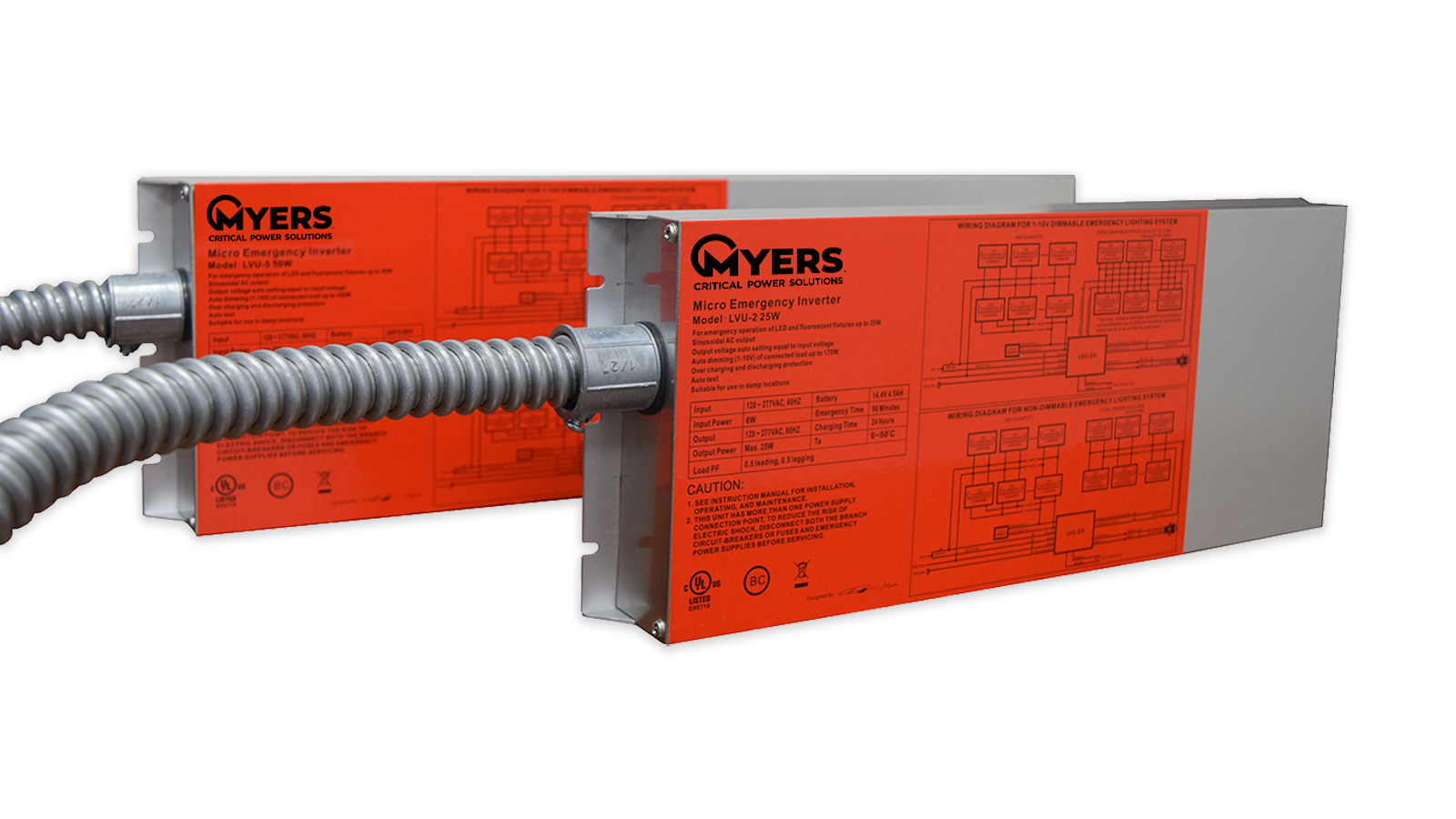

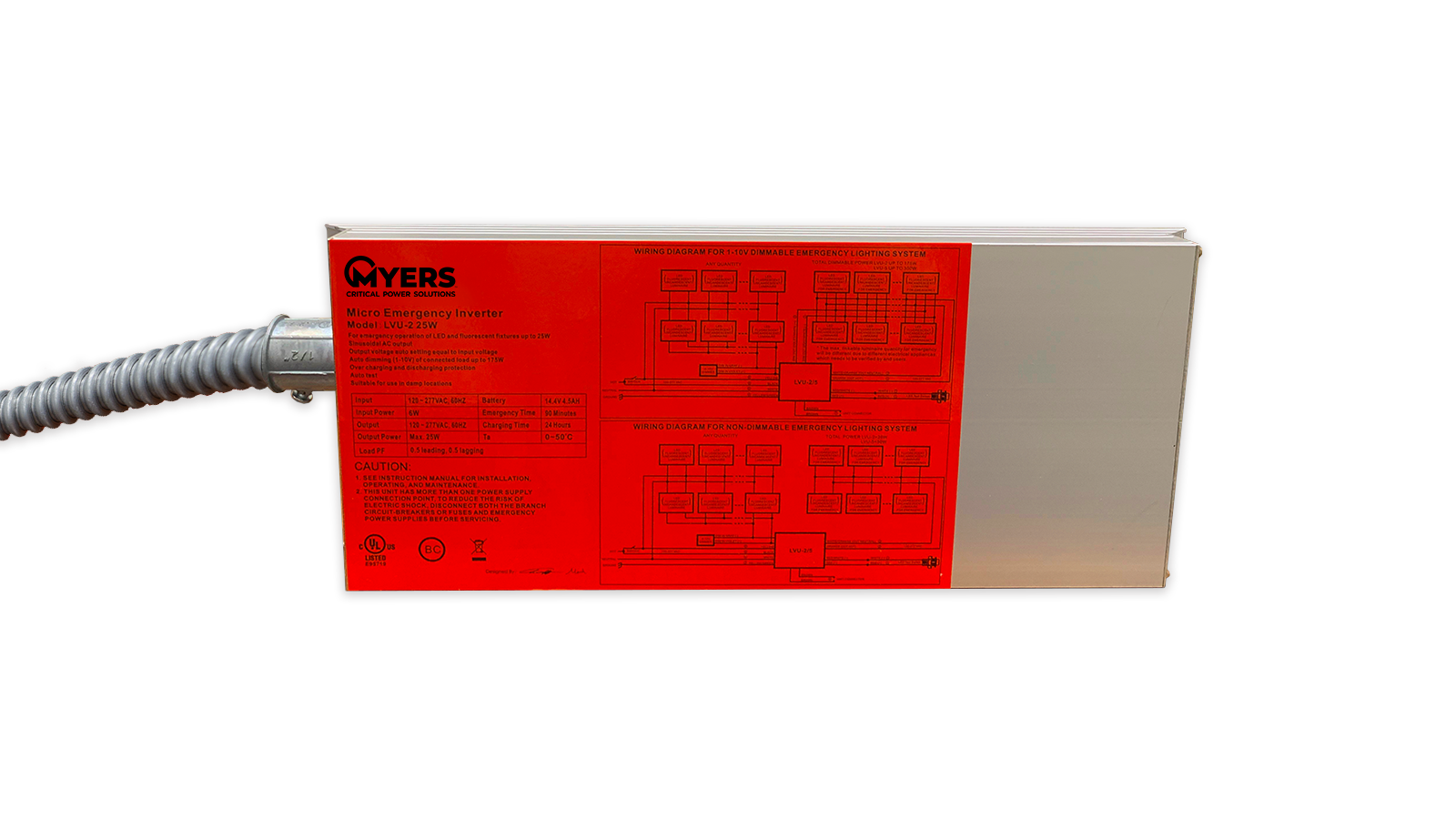

The LVU Series is an ultra-efficient micro inverter that empowers architects and engineers to meet emergency lighting requirements while using existing lighting for interior and exterior egress. Designed with advanced Pure Sine Wave technology, units provide direct AC power and full illumination to all lighting sources. With industry-leading efficiency, units run cool and reduce the overall operating costs of emergency lighting systems.
Power Capacity: 25VA | 50VA
Runtime: 90 Minute Standard
Mounting: Remote Mount | Inside, Outside or On Top of Fixture | Unit Can Be Mounted In Any Direction | No Distance Limitations Depending On Wattage/Wire Size
Compatibility: Generator (10x Inverter Load) | All Lighting Loads
Standard Features: High Efficiency | Runs Cool, No Fans | High Crest Factor and Inrush Capabilities | Auto-Dimming | Output Types: Normally On, Normally Off or Switched | Non-Condensing < 95% Humidity | 36” Flexible Conduit Tail
Standard Diagnostics: Self-Testing and Self-Diagnostics | Indicator Lights for Charger, Alarm Function, and Test Switch | Optional Remote Test Switch
Warranty: 5-Year Standard All Parts Including Batteries
Inverter Specs: Line Interactive PWM MOSFET-based Inverter | Pure Sine Wave | 250mS Transfer Time | Operating Temp 32°-122°F (0°-50°C)
Battery Specs: Nickel Cadmium | Operating Temp 32°-122°F (0°-50°C)
Input Voltage: Auto-Selected | 120-277VAC 1-Phase 2-Wire Plus 10% -15%
Output Voltage: 120VAC or 277VAC 1-Phase 2-Wire Plus Ground
Output Load Power Factor: 0.5 Lag to 0.5 Lead
Output Voltage Distortion: < 10% for Resistive Loads
Dimensions (LxWxD"): 25VA: 13.25x5.3125x1.375 | 50VA: 20.75x5.3125x1.375
