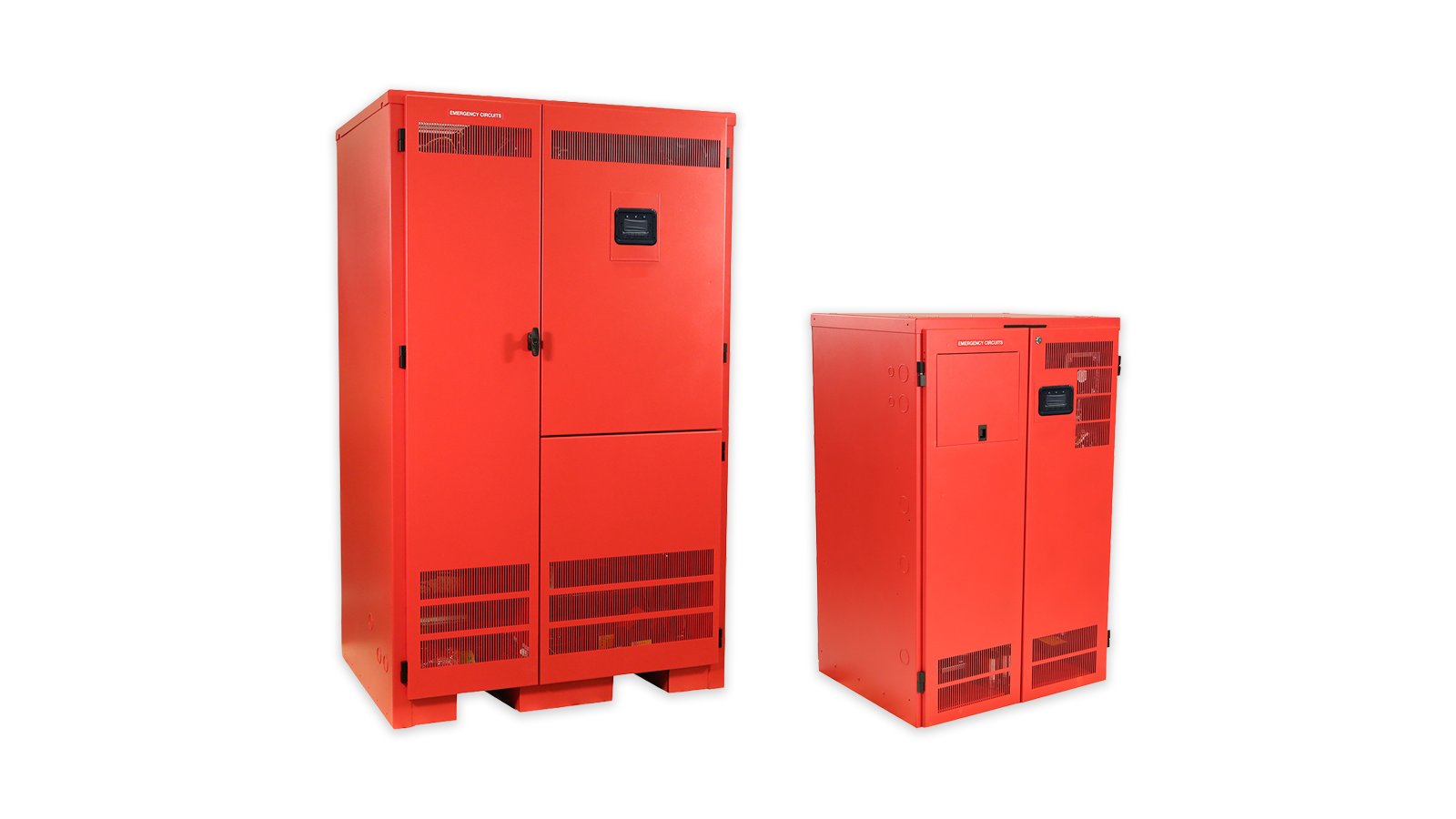

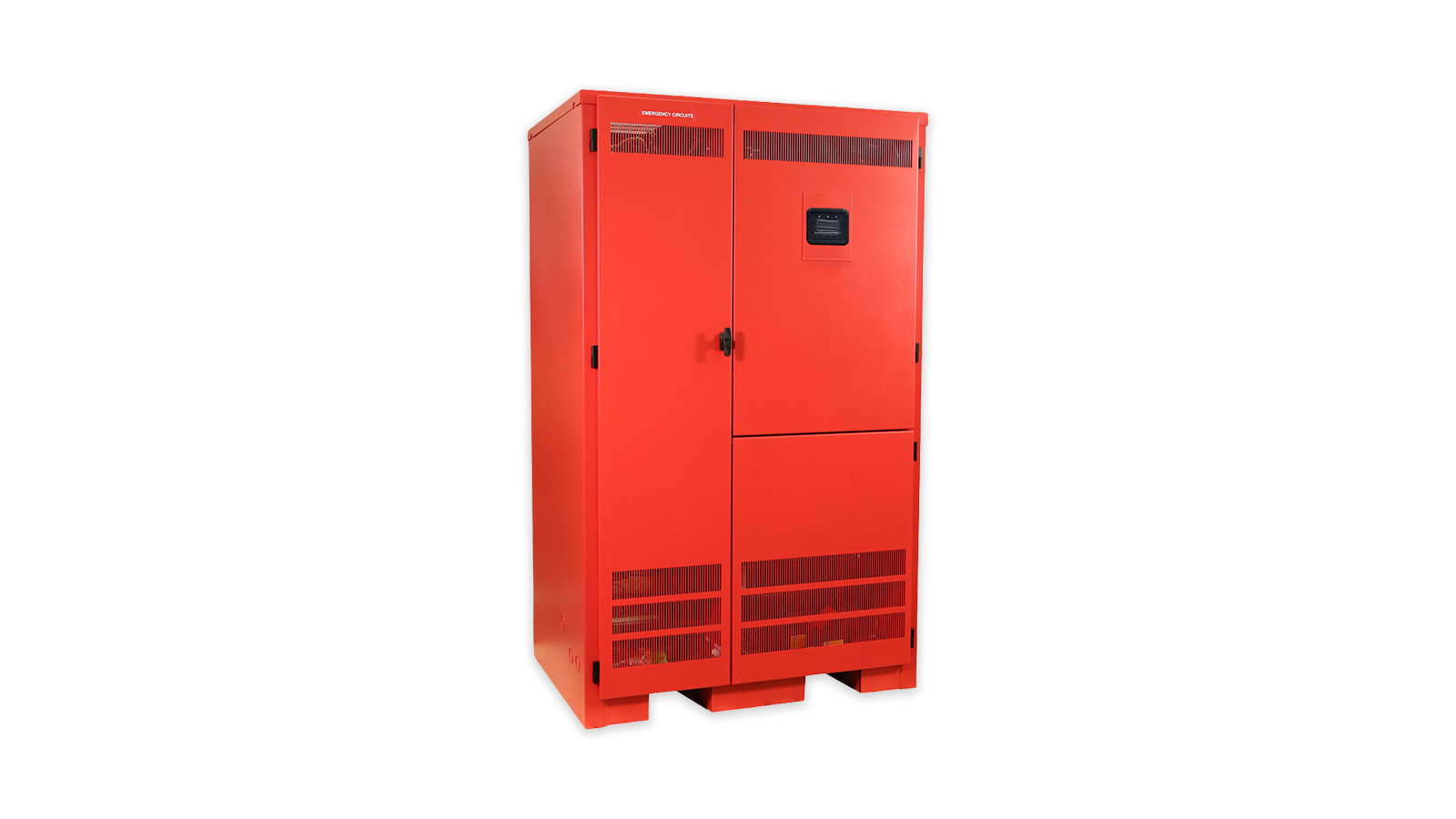

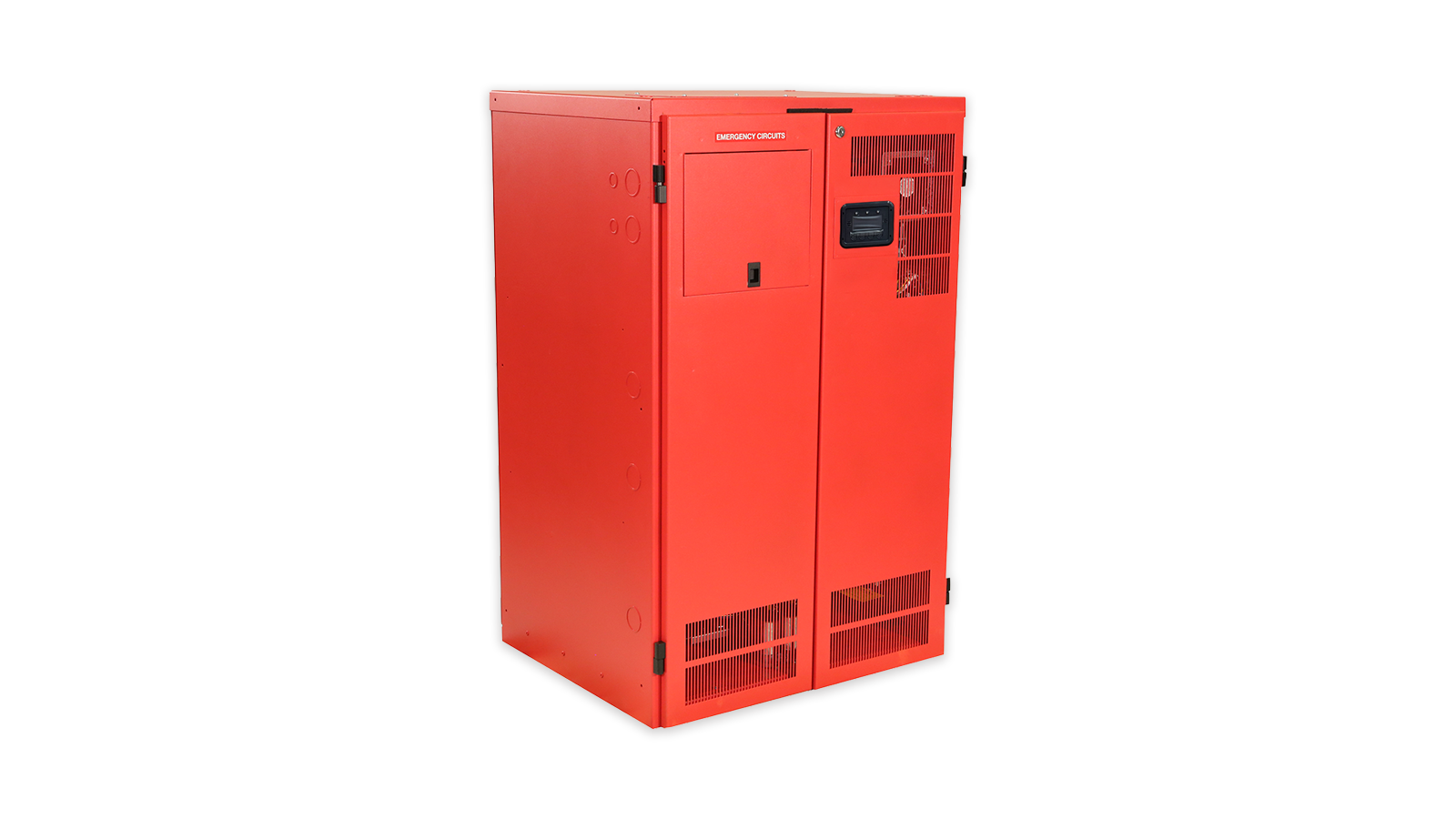

Three-Phase Inverter
Delivering up to 98% efficiency and available in sizes from 4.8 to 50 kVA, the CIII Series three-phase central inverter family provides reliable, code-compliant emergency backup power for large facilities, campuses, and mission-critical lighting applications. Featuring advanced PWM/IGBT technology, ultra-fast 2 ms transfer time, integrated maintenance bypass, and comprehensive monitoring and communications capabilities, the CIII combines dependable performance, flexible integration, and simplified system management in a space-saving design.
Power Capacity: 4.8kVA | 6.0kVA | 8.0kVA | 10.0kVA | 12.5kVA | 16.7kVA | 24.0kVA | 33.0kVA | 40.0kVA | 50.0kVA
Efficiency: 98% Efficient Typical
Runtime: 90 Minute Standard | Configurable (Contact Factory)
Transfer Time: No Break 2ms Transfer Time
Standard Diagnostics: Automatic Event, Test, and Alarm Log
Optional Diagnostics: Status Monitoring | Summary Form C Contacts | Summary Alarm | Output Trip Alarms | Remote Panels
Communications: Standard: RS-232 Port | Optional: BACnet, BACnet IP, Modbus TCP/IP, Modbus RTU, IoT Inverter Connect
Standard Features: PWM/IGBT Technology and Micro-Controller | Internal Maintenance Bypass | User Programmable with Password Protection | Input Circuit Breaker (65 KAIC Rating) | NEMA Type 1 Cabinet | Space-Saving Design | Low Audible Noise (45 dBA @1m) | Forced Air Cooling Only During Emergency Operation (No Filters Required)
Optional Features: External Maintenance Bypass | Output Circuit Breakers | Fast Charge | Seismic Mounting
Input Voltage: 120/208 or 277/480 VAC | 3-Phase 4-Wire Plus Ground | Custom Available (Contact Factory)
Output Voltage: 120/208 or 277/480 VAC | 3-Phase 4-Wire Plus Ground | Custom Available (Contact Factory)
Output Load Power Factor: 0.5 Lag to 0.5 Lead
Output Voltage Distortion: Less Than 3% THD for Linear Loads
Compatibility: Lighting Loads | Motor Loads
Inverter Operating Temp: 32°F to 104°F (0°C to 40°C)
Battery Operating Temp: 68°F to 86°F (20°C to 30°C)
Optional Service & Support: Factory Startup & Training | Extended Maintenance Plan | Extended Warranty
Cabinet Size (HxWxD"): 4.8-16.7kVA: Electronics 47x30x25; Batteries 47x30x25 | 24.0-50.0kVA: Electronics 72x44x31; Batteries 72x48x31
